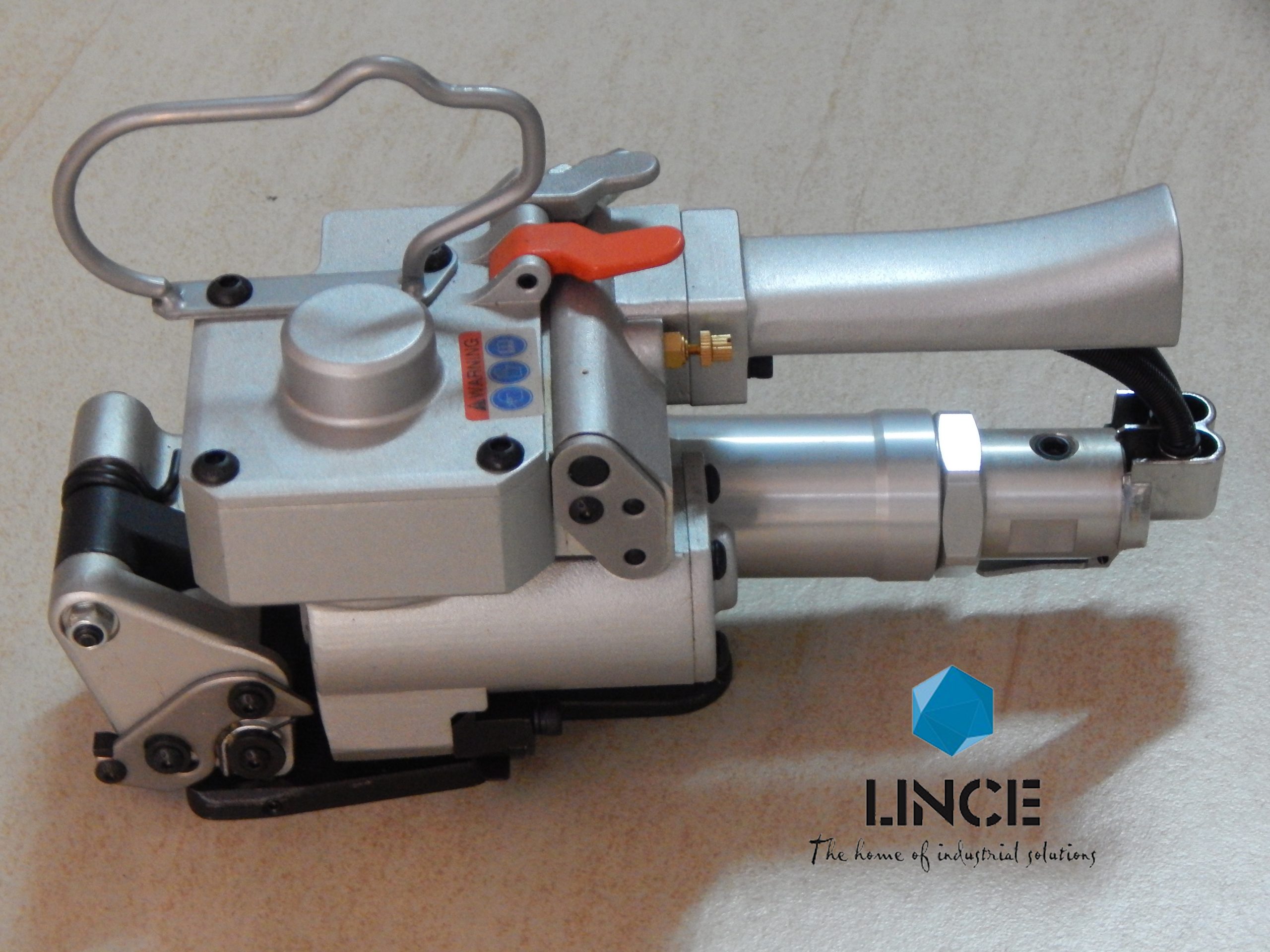

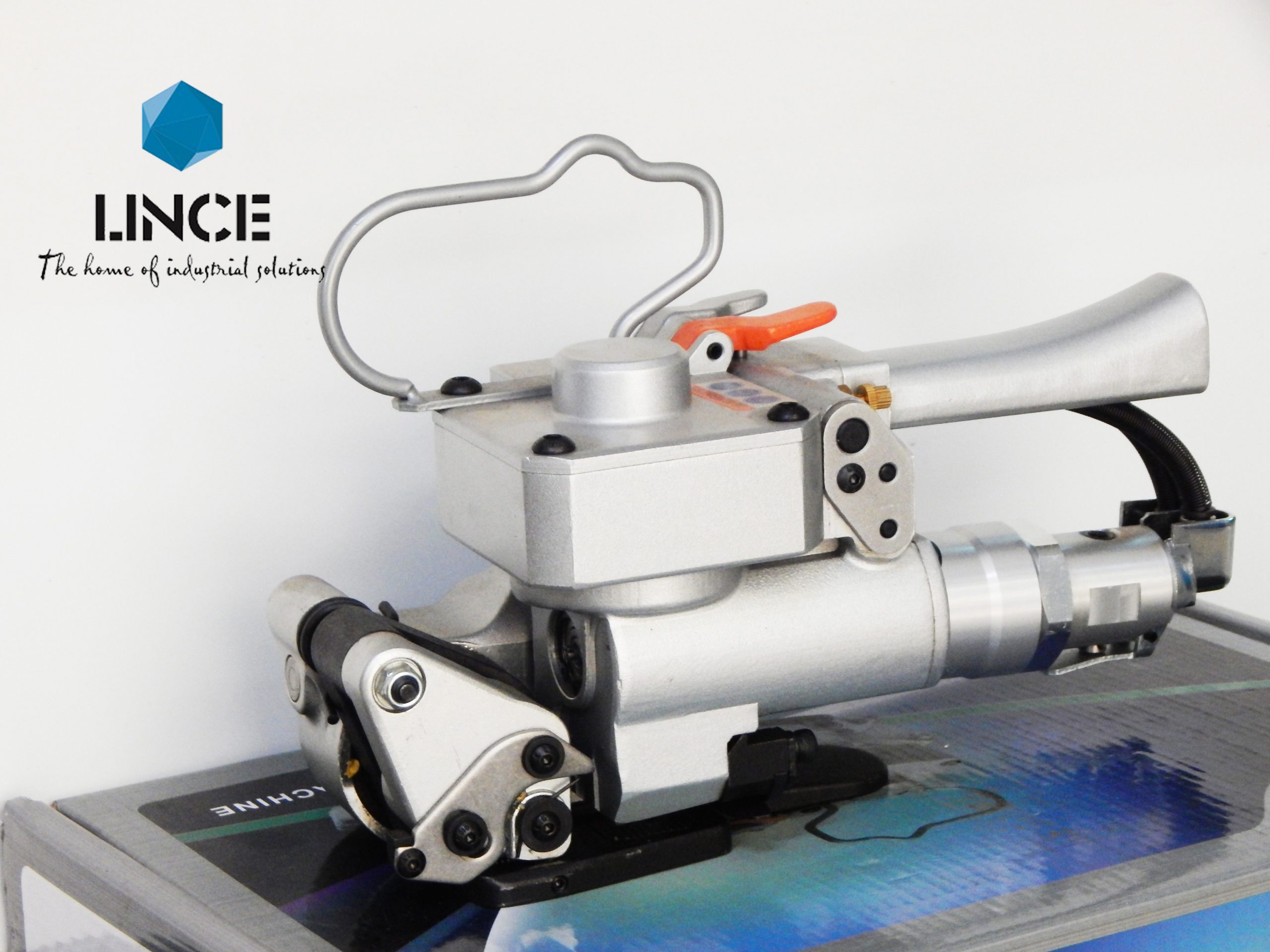

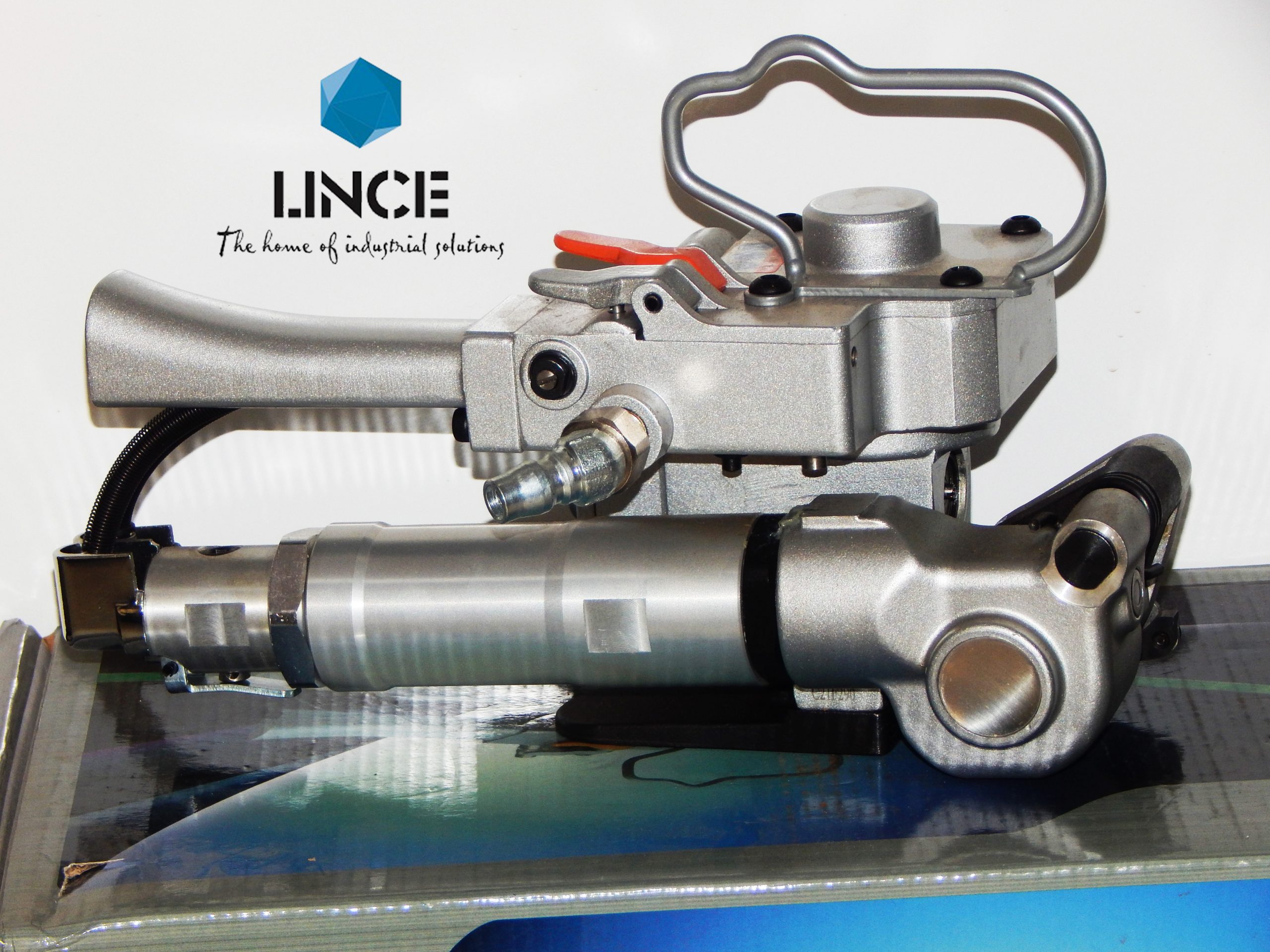

Pneumatic Strapping Machine

Category:

Description

Pneumatic Strapping  machine can be used with polyester (PET) or polypropylene (PP) straps wide 13-19mm (1/2″ to 3/4″).  The pneumatic hand banding tool can be used with one hand and it is easy to manipulate. The strapping tension is adjusted from 3500N (786 lbs). The pneumatic strapping tool can be used in all sorts of industries or warehouses. The hand strapping tool uses the latest strapping technology. This pneumatic banding tool is designed to deliver a high-grade friction weld seal.

 Features

  • Pneumatic machine: it operates with air, and is very affordable,
  • Seals via friction, doing away with the need for metal seals,
  • The seal is extremely strong, secure and aesthetically pleasing,
  • High tensile strength. Ideal for merchandise such as steel or other very heavy loads,

Technical specification:

 Usage: For PET and PP strap w/ Battery & Charger
Size of the strapping tool: 280x160x180 mm (11” x 6.3” x 7”)
Weight: 3.82 Kg
Strap width: from 13-19mm (1/2″ to 3/4″)
Strap thickness: 0.5 – 1.2 mm
Apply straps: PET and PP strap
Seal: high-grade friction weld seal, vibration welding (heating by friction)
Maximum tension force: Max Tension: 3500N (786lbs)
Air pressure 0.5-0.8 MPa
